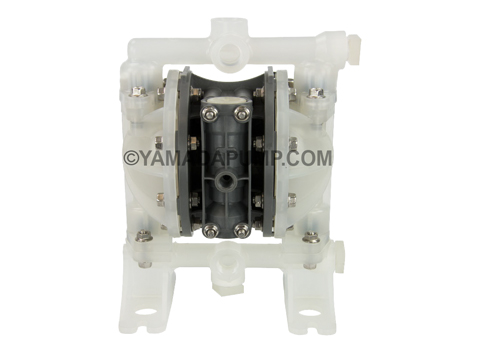

(G15) PURE POLYPROPYLENE
Technical Data
- Fluid Port : 1/2″ NPT
- GPM : 16.6
- Discharge Volume Per Cycle : 0.039-0.050 Gallons
- Air Motor : Polypropylene (G15 plastic)
- Air Supply Pressure : 20-100 PSI .
- Max. Cycles Per Minute : 379 (pumps vary)
- Max. Size Solid: 1/32″ (1mm)
- Max Dry Suction Lift : 13.5′ (pumps vary)
Dimension
- Dimensions: 8.58″ W x 11.25″ H (2.6 kg)
- Net Weight: 5.74 lbs.
- Shipping Weight: 9 lbs.
Share Now :
G15 Series Data Sheet
