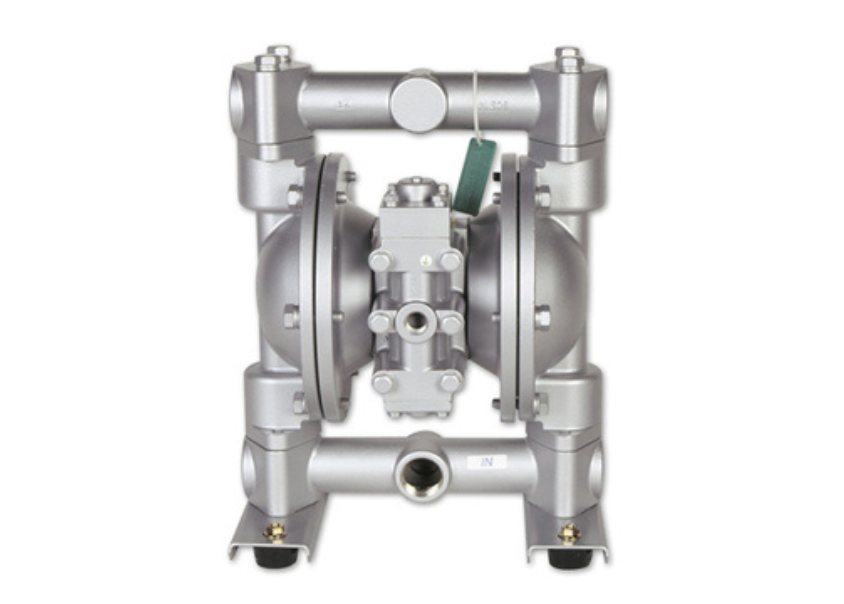

NDP-25 ALUMINUM (NDP)
46.2 Gallons/Minute
1″ Fluid Port (NPT or ANSI Flange)
Technical Data
- Air Inlet : 3/8″ Female NPT (includes ball valve)
- Air Exhaust : 3/4″ Female NPT (includes silencer)
- Air Supply Pressure : 20 to 100 PSI (1.4 to 7 kgf/cm²)
- Discharge Volume Per Cycle : Rubber diaphragm: 0.23 gallons (862 cc) (NDP) :PTFE diaphragm: 0.17 gallons (654 cc)
- Maximum Cycles Per Minute : Rubber diaphragm: 210 (NDP) : PTFE diaphragm: 210 (NDP)
- Maximum Size Solid : 3/16″ (4.8 mm) (NDP)
- Maximum Dry Suction Lift Rubber-fitted pump capability: 18-feet
- Air Motor : Aluminum
- Optional Coating : PTFE-coated (NDP)
Dimension
- Dimensions: 11.30″ W x 14.93″ H
- Net Weight: 28.7 lbs. (13 kg)
- Shipping Weight: 33.7 lbs.
