HVAC Fans
GENERAL FEATURES: Range with 17 sizes from 160 mm. until 1000 mm., provided with three phase 2,4,6 and 8 pole motors.
Air-flow up 100000 m3/h. Maximum working temperature 85C in continuous.
Application:
- General ventilation., assembly inside cabinets.
- Renovation of stuffy air environments in buildings and industry.
- Fresh air injection in any local types, buildings and industry installations.
- Ventilation in work shops. Hood kitchen.
- Clean air transport, chillers and cooling or air treatment equipment.

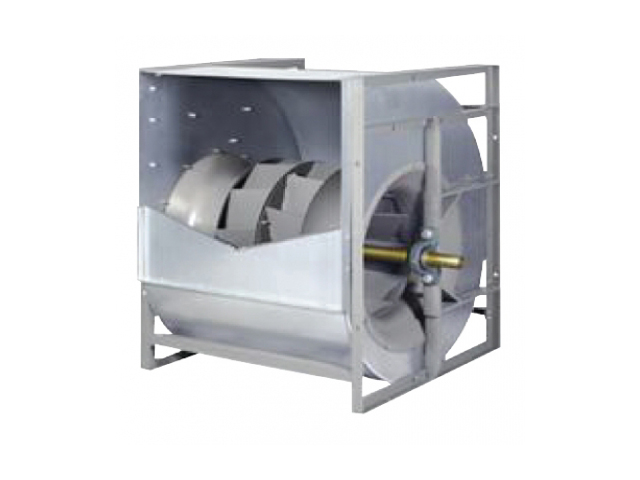

1. DBB Model
Double inlet Belt Drive • Backward curve • Impeller Diameter : 200 – 1,000 mm. • Flow rate up to 120,000 m /hr • Static Pressure up to 250 mmWG
2. DFB Model
Double inlet Belt Drive • Forward curve • Impeller Diameter : 200 – 1,000 mm. • Flow rate up to 100,000 m /hr • Static Pressure up to 150 mmWG

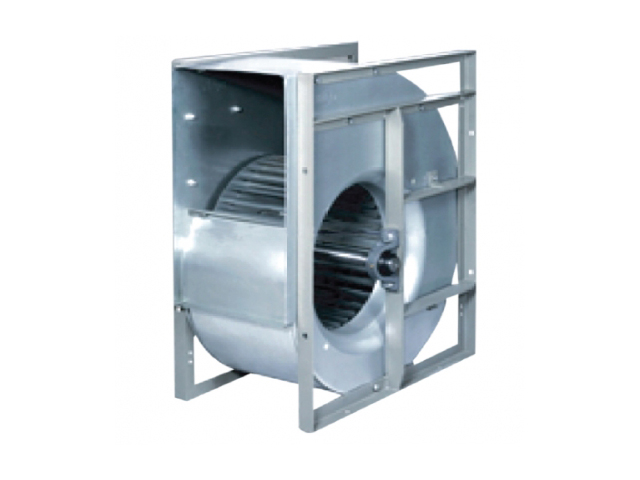

3. SFB Model
Single inlet Belt Drive • Forward curve • Impeller Diameter : 200 – 1,000 mm. and bigger size on request • Flow rate up to 50,000 m /hr • Static Pressure up to 150 mmWG
4. SBB Model
Single inlet Belt Drive • Backward curve • Impeller Diameter : 200 – 1,000 mm. • Flow rate up to 60,000 m3 /hr
